Chapter 4 Bayesian Decision Theory

4.1 Introduction

Bayesian decision theory is a fundamental statistical approach to the problem of pattern classification. It is considered the ideal case in which the probability structure underlying the categories is known perfectly. While this sort of stiuation rarely occurs in practice, it permits us to determine the optimal (Bayes) classifier against which we can compare all other classifiers. Moreover, in some problems it enables us to predict the error we will get when we generalize to novel patterns.

This approach is based on quantifying the tradeoffs between various classification decisions using probability and the costs that accompany such decisions. It makes the assumption that the decision problem is posed in probabilistic terms, and that all of the relevant probability values are known.

Let us reconsider the hypothetical problem posed in Chapter 1 of designing a classifier to separate two kinds of fish: sea bass and salmon. Suppose that an observer watching fish arrive along the conveyor belt finds it hard to predict what type will emerge next and that the sequence of types of fish appears to be random. In decision-theoretic terminology we would say that as each fish emerges nature is in one or the other of the two possible states: Either the fish is a sea bass or the fish is a salmon. We let w denote the state of nature, with w = w₁for sea bass and w = w₂ for salmon. Because the state of nature is so unpredictable, we consider w to be a variable that must be described probahilistically.

Figure 4.1: Class conditional density functions show the probabiltiy density of measuring a particular feature value x given the pattern is in category w_i.

If the catch produced as much sea bass as salmon, we would say that the next fish is equally likely to be sea bass or salmon. More generally, we assume that there is some prior probability P(w₁) that the next fish is sea bass, and some prior probability P(w₂) that it is salmon. If we assume there are no other types of fish relevant here, then P(w₁)+ P(w₂)=1. These prior probabilities reflect our prior knowledge of how likely we are to get a sea bass or salmon before the fish actually appears.

If we are forced to make a decision about the type of fish that will appear next just by using the value of the prior probahilities we will decide w₁ if P(w₁)> P(w₂) otherwise decide w₂. This rule makes sense if we are to judge just one fish, but if we were to judge many fish, using this rule repeatedly, we would always make the same decision even though we know that both types of fish will appear. Thus, it does not work well depending upon the values of the prior probabilities.

In most circumstances, we are not asked to make decisions with so little information. We might for instance use a lightness measurement x to improve our classifier. Different fish will yield different lightness readings, and we express this variability: we consider x to be a continuous random variable whose distribution depends on the state of nature and is expressed as p(x|w). This is the class-conditional probability density (state-conditional probability density) function, the probability density function for x given that the state of nature is in w. Then the difference between p(x|w₁) and p(x|w₂) describes the difference in lightness between populations of sea bass and salmon (Figure 4.1).

Suppose that we know both the prior probabilities P(w_j) and the conditional densities p(x|w_j) for j = 1, 2. Suppose further that we measure the lightness of a fish and discover that its value is x. How does this measurement influence our attitude concerning the true state of nature? We note first that the (joint) probability density of finding a pattern that is in category w_j and has feature value x can be written in two ways: p(w_j,x) = P(w_j|x) p(x) = p(x|w_j) P(w_j). Rearranging these leads us to the answer to our question, which is called Bayes formula:

(4.1)

where in this case of two categories

(4.2)

Bayes formula can be expressed informally as

(4.3)

Bayes formula shows that by observing the value of x we can convert the prior probability P(w_j) to the posterior probability P(w_j|x) -the probability of the state of nature being w_j given that feature value x has been measured. p(x|w_j) is called the likelihood of w_j with respect to x, a term chosen to indicate that, other things being equal, the category w_j, for which p(x|w_j) is large is more “likely” to be the true category. Notice that it is the product of the likelihood and the prior probability that is most important in determining the posterior probability; the evidence factor p(x), can be viewed as a scale factor that guarantees that the posterior probabilities sum to one. The variation of posterior probability P(w_j|x) with x is illustrated in Figure 4.2 for the case P(w₁)=²/₃ and P(w₂)=¹/₃.

If we have an observation x for which P(w₁|x)>P(w₂|x), we would naturally be inclined to decide that the true state of nature is w₁. The probability of error is calculated as

(4.4)

The Bayes decision rule is stated as

Decide w₁if P(w₁|x)>P(w₂|x); otherwise decide w₂ (4.5)

Under this rule eq.4.4 becomes

Figure 4.2: Posterior probabilities.

P(error|x)=min[P(w₁|x), P(w₂|x)] (4.6)

This form of decision rule emphasizes the role of the posterior probabilities. As being equivalent, the same rule can be expressed in terms of conditional and prior probabilities as:

Decide w₁if p(x|w₁)P(w₁) > p(x|w₂)P(w₂); otherwise decide w₂ (4.7)

Figure 4.3: The likelihood ratio p(x|w₁)/p(x|w₂) for the distributions shown in Figure 4.1. If we employ a zero-one or classification loss, our decision boundaries are determined by the threshold, if our loss function penalizes miscategorizing w₂ as w₁ patterns more than the converse, we get the larger threshold, and hence R₁becomes smaller.

4.3.1 Minimax Criterion

In-order to design a classifier to perform well over a range of prior probabilities the worst overall risk for any value of the priors is as small as possible that is, minimize the maximum possible overall risk. Let R₁denote that (as yet unknown) region in feature space where the classifier decides w₁ and likewise for R₂ and w₂, and then we write our overall risk Eq.4.11 in terms of conditional risks:

By using the fact that P(w₂)=1- P(w₁) and that the function above can be rewritten the risk as:

(4.20)

For minimax solution, the following condition should be satisfied.

(4.21)

and

(4.22)

in Eq.4.20 is known as minimax risk.

If we can find a boundary such that the constant of proportionality is 0, then the risk is independent of priors. This is the minimax risk, R_mm

(4.23)

4.4 The Gaussian (Normal) Density

The definition of the expected value of a scalar function f(x) defined for some density p(x) is given by

(4.24)

If the values of the feature x are restricted to points in a discrete set D we must sum over all samples as

(4.25)

where P(x) is the probability mass.

The continuous univariate normal density is given by

(4.26)

where mean m (expected value, average) is given by

(4.27)

and the special expectation that is variance (squared deviation) is given by

(4.28)

The univariate normal density is specified by its two parameters, its mean m, and the variance s. Samples from normal distributions tend to cluster about the mean, and the extend to which they spread out depends on the variance (Figure 4.4).

The multivariate normal density in d dimensions is written as

(4.29)

where x is a d-component column vector, m is the d-component mean vector, S is d´d covariance matrix, |S| is its determinant and S^-1 is its inverse and mean vector m becomes

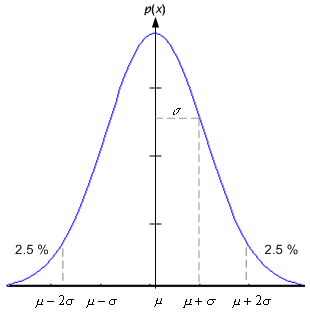

Figure 4.4: A univariate Gaussian distribution has roughly 95% of its area in the range | x-m | £ 2s.

(4.30)

The covariance matrix S is defined as the square matrix whose ij^th element s_ijis the covariance of x_i and x_j: The covariance of two features measures their tendency to vary together, i.e., to co-vary.

(4.31)

where i, j=1,…,d. Therefore, in expanded form we have

(4.32)

We can use vector product to write the covariance matrix as

(4.33)

Thus S is symmetric, and its diagonal elements are the variances of the respective individual elements x_i of x (e.g.,), which can never be negative; the off-diagonal elements are the covariances of x_i and x_j, which can be positive or negative. If the variables x_i and x_j are statistically independent, the covariances are zero, and the covariance matrix is diagonal. If all the off-diagonal elements are zero, p(x) reduces to the product of the univariate normal densities for the components of x. The analog to the Cauchy-Schwarz inequality comes from recognizing that if w is any d-dimensional vector, then the variance of w^Tx can never be negative. This leads to the requirement that the quadratic form w^TSw never be negative. Matrices for which this is true are said to be positive semidefinite; thus, the covariance matrix is positive semidefinite.

Linear combinations of jointly normally distributed random variables, independent or not, are normally distributed.

Figure 4.5: Samples drawn from a two-dimensional Gaussian lie in a cloud centered on the mean. The ellipses show lines of equal probability density of the Gaussian.

Figure 4.6: The contour lines show the regions for which the function has constant density. From the equation for the normal density, it is apparent that points, which have the same density, must have the same constant term (x -µ)^-¹S(x -µ).

As with the univariate density, samples from a normal population tend to fall in a single cloud or cluster centered about the mean vector, and the shape of the cluster depends on the covariance matrix (see Figure 4.5 and Figure 4.6).

From the multivariate normal density formula in Eq.4.27 notice that the density is constant on surfaces where the squared distance (Mahalanobis distance)(x -µ)^TS^-¹(x -µ) is constant. These paths are called contours (hyperellipsoids). The principle axes of these contours are given by the eigenvectors of S, where the eigenvalues determine the lengths of these axes.

The covariance matrix for 2 features x and y is diagonal (which implies that the 2 features don't co-vary), but feature x varies more than feature y. The contour lines are stretched out in the x direction to reflect the fact that the distance spreads out at a lower rate in the x direction than it does in the y direction. The reason that the distance decreases slower in the x direction is because the variance for x is greater and thus a point that is far away in the x direction is not quite as distant from the mean as a point that is far away in the y direction (see Figure 4.9).

4.4.1 Interpretation of eigenvalues and eigenvectors

It is sometimes convenient to perform a coordinate transformation that converts an arbitrary multivariate normal distribution into a spherical one –that is, one having a covariance matrix proportional to the identity matrix I. If we define F to be the matrix whose columns are the orthonormal eigenvectors of S, and L the diagonal matrix of the corresponding eigenvalues, then the transformation A=FL^-1/2 applied to the coordinates ensures that the transformed distribution has covariance matrix equal to the identity matrix I. If we view matrix A as a linear transformation, an eigenvector represents an invariant direction in the vector space. When transformed by A, any point lying on the direction defined by v will remain on that direction, and its magnitude will be multipled by the corresponding eigenvalue (see Figure 4.7).

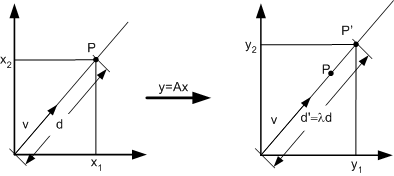

Figure 4.7: The linear transformation of a matrix.

Given the covariance matrix S of a Gaussian distribution, the eigenvectors of S are the principal directions of the distribution, and the eigenvalues are the variances of the corresponding principal directions. The linear transformation defined by the eigenvectors of S leads to vectors that are uncorrelated regardless of the form of the distribution. If the distribution happens to be Gaussian, then the transformed vectors will be statistically independent.

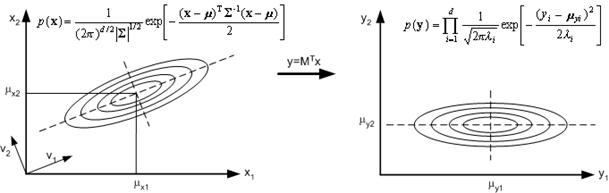

Figure 4.8: The linear transformation.

Figure 4.9: The covariance matrix for two features x and y do not co-vary, but feature x varies more than feature y.

The covariance matrix for two features x and y is diagonal, and x and y have the exact same variance. This results in euclidean distance contour lines (see Figure 4.10).

Figure 4.10: The covariance matrix for two features that have exact same variances.

The covariance matrix is not diagonal. Instead, x and y have the same variance, but x varies with y in the sense that x and y tend to increase together. So the covariance matrix would have identical diagonal elements, but the off-diagonal element would be a strictly positive number representing the covariance of x and y (see Figure 4.11).

Figure 4.11: The covariance matrix for two features that has exact same variances, but x varies with y in the sense that x and y tend to increase together.

4.5 Discriminant Functions, and Decision Surfaces

There are many different ways to represent pattern classifiers. One of the most useful is in terms of a set of discriminant functions g_i(x), i=1,…,c. The classifier is said to assign a feature vector x to class w_i if

g_i(x) > g_j(x), i¹j (4.34)

A Bayes classifier is easily and naturally represented in this way. For the general case with risks, we can let g_i(x)= - R(a_i|x), because the maximum discriminant function will then correspond to the minimum conditional risk. For the minimum error-rate case, we can simplify things further by taking g_i(x)= P(w_i|x), so that the maximum discriminant function corresponds to the maximum posterior probability. Clearly, the choice of discriminant functions is not unique. In particular, for minimum-error rate classification, any of the following choices gives identical classification results, but some can be much simpler to understand or to compute than others:

(4.35)

(4.36)

(4.37)

Even though the discriminant functions can be written in a variety of forms, the decision rules are equivalent. The effect of any decision rule is to divide the feature space into c decision boundaries, R₁,…, R_c. If g_i(x) > g_j(x) for all i¹j, then x is in R_i, and the decision rule calls for us to assign x to w_i. The regions are separated by decision boundaries, surfaces in feature space where ties occur among the largest discriminant functions.

While the two-category case is just a special instance of the multicategory case, instead of using two discriminant functions g₁ and g₂ and assigning x to w₁ if g₁>g₂, it can be treated by using a single discriminant function

(4.38)

and to use the following decision rule: Decide w₁if g(x)>0; otherwise decide w₂. One of the various forms in which the minimum-error rate discriminant function can be written, the following two are particularly convenient:

(4.39)

(4.40)

4.6 Discriminant Functions For The Normal Density

Eq.4.37 can be easily evaluated if the densities are multivariate normal. In this case, from eq.4.29 we have

(4.41)

Case 1:

The simplest case occurs when the features that are measured is independent of each other, that is, statistically independent, and when each feature has the same variance, s². For example, if we were trying to recognize an apple from an orange, and we measured the colour and the weight as our feature vector, then chances are that there is no relationship between these two properties. The non-diagonal elements of the covariance matrix are the covariances of the two features x₁=colour and x₂=weight. But because these features are independent, their covariances would be 0. Therefore, the covariance matrix for both classes would be diagonal, being merely s²times the identity matrix I.

As a second simplification, assume that the variance of colours is the same is the variance of weights. This means that there is the same degree of spreading out from the mean of colours as there is from the mean of weights. If this is true for some class i then the covariance matrix for that class will have identical diagonal elements. Finally, suppose that the variance for the colour and weight features is the same in both classes. This means that the degree of spreading for these two features is independent of the class from which you draw your samples. If this is true, then the covariance matrices will be identical. When normal distributions are plotted that have a diagonal covariance matrix that is just a constant multplied by the identity matrix, their cluster points about the mean are shperical in shape.

Geometrically, this corresponds to the situation in which the samples fall in equal-size hyperspherical clusters, the cluster for the i^th class being centered about the mean vector m_i (see Figure 4.12). The computation of the determinant and the inverse of S_i is particularly easy:

and (4.42)

Because both |S_i| and the (d/2) ln 2p term in Eq.4.41 are independent of i, they are unimportant additive constants that can be ignored. Thus, we obtain the simple discriminant functions

Figure 4.12: Since the bivariate normal densities have diagonal covariance matrices, their contours are spherical in shape. Each class has the exact same covariance matrix, the circular lines forming the contours are the same size for both classes. This is because identical covariance matrices imply that the two classes have identically shaped clusters about their mean vectors.

(4.43)

where

(4.44)

If the prior probabilities are not equal, then Eq.4.43 shows that the squared distance must be normalized by the variance and offset by adding ln P(w_i); thus, if x is equally near two different mean vectors, the optimal decision will favor the a priori more likely category.

Regardless of whether the prior probabilities are equal or not, it is not actually necessary to compute distances. Expansion of the quadratic form yields

(4.45)

which appears to be a quadratic function of x. However, the quadratic term x^Tx is the same for all i, making it an ignorable additive constant. Thus, we obtain the equivalent linear discriminant functions

(4.46)

where

(4.47)

and

(4.48)

We call w_i₀the threshold or bias for the i^th category.

The decision boundaries for these discriminant functions are found by intersecting the functions g_i(x) and g_j(x) where i and j represent the 2 classes with the highest a posteriori probabilites. As in the univariate case, this is equivalent to determining the region for which g_i(x) is the maximum of all the discriminant functions. By setting g_i(x) = g_j(x) we have that:

(4.49)

Consider the term w_i₀ - w_j₀:

(4.50)

Now, by adding and subtracting the same term, we get:

(4.51)

By letting:

(4.52)
the result is:

(4.53)
But because of the way we define w_i and w_j, this is just:

(4.54)

So from the originial equation we have :

(4.55)

and after multiplying through by variance the final decision boundary is given by:

(4.56)

Now let w =. Then this boundary can be written as:

(4.57)

where

(4.58)

and

w = (4.59)

This is called the normal form of the boundary equation. Geometrically, equations 4.57, 4.58, and 4.59 define a hyperplane throught the point x₀ that is orthogonal to the vector w. But since w= then the hyperplane which seperates R_i and R_j is orthogonal to the line that links their means. If P(w_i)=P(w_j), the second term on the right of Eq.4.58 vanishes, and thus the point x₀is halfway between the means (equally divide the distance between the 2 means, with a decision region on either side), and the hyperplane is the perpendicular bisector of the line between the means (see Figure 4.13).

Figure 4.13: Two bivariate normal distributions, whose priors are exactly the same. Therefore, the decision bondary is exactly at the midpoint between the two means. The decision boundary is a line orthogonal to the line joining the two means.

If P(w_i)¹P(w_j) the point x₀shifts away from the more likely mean. Note, however, that if the variance is small relative to the squared distance , then the position of the decision boundary is relatively insensitive to the exact values of the prior probabilities. In other words, there are 80% apples entering the store. If you observe some feature vector of color and weight that is just a little closer to the mean for oranges than the mean for apples, should the observer classify the fruit as an orange? The answer depends on how far from the apple mean the feature vector lies. In fact, if P(w_i)>P(w_j) then the second term in the equation for x₀ will subtract a positive amount from the first term. This will move point x₀ away from the mean for R_i. If P(w_i)<P(w_j) then x₀ would tend to move away from the mean for R_j. So for the above example and using the above decision rule, the observer will classify the fruit as an apple, simply because it's not very close to the mean for oranges, and because we know there are 80% apples in total (see Figure 4.14 and Figure 4.15).

Figure 4.14: As the priors change, the decision boundary throught point x₀ shifts away from the more common class mean (two dimensional Gaussian distributions).

Figure 4.15: As the priors change, the decision boundary throught point x₀ shifts away from the more common class mean (one dimensional Gaussian distributions).

If the prior probabilities P(w_i) are the same for all c classes, then the ln P(w_i) term becomes another unimportant additive constant that can be ignored. When this happens, the optimum decision rule can be stated very simply: the decision rule is based entirely on the distance from the feature vector x to the different mean vectors. The object will be classified to R_i if it is closest to the mean vector for that class. To classify a feature vector x, measure the Euclidean distance from each x to each of the c mean vectors, and assign x to the category of the nearest mean. Such a classifier is called a minimum-distance classifier. If each mean vector is thought of as being an ideal prototype or template for patterns in its class, then this is essentially a template-matching procedure.

Case 2:

Another simple case arises when the covariance matrices for all of the classes are identical but otherwise arbitrary. Since it is quite likely that we may not be able to measure features that are independent, this section allows for any arbitrary covariance matrix for the density of each class. In order to keep things simple, assume also that this arbitrary covariance matrix is the same for each class w_i. This means that we allow for the situation where the color of fruit may covary with the weight, but the way in which it does is exactly the same for apples as it is for oranges. Instead of having shperically shaped clusters about our means, the shapes may be any type of hyperellipsoid, depending on how the features we measure relate to each other. However, the clusters of each class are of equal size and shape and are still centered about the mean for that class.

Geometrically, this corresponds to the situation in which the samples fall in hyperellipsoidal clusters of equal size and shape, the cluster for the ith class being centered about the mean vector m_i. Because both S_i and the (d/2) ln 2p terms in eq. 4.41 are independent of i, they can be ignored as superfluous additive constants. Using the general discriminant function for the normal density, the constant terms are removed. This simplification leaves the discriminant functions of the form:

(4.60)

Note that, the covariance matrix no longer has a subscript i, since it is the same matrix for all classes.

If the prior probabilities P(w_i) are the same for all c classes, then the ln P(w_i) term can be ignored. In this case, the optimal decision rule can once again be stated very simply: To classify a feature vector x, measure the squared Mahalanobis distance (x -µ_i)^TS^-¹(x -µ_i) from x to each of the c mean vectors, and assign x to the category of the nearest mean. As before, unequal prior probabilities bias the decision in favor of the a priori more likely category.

Expansion of the quadratic form (x -µ_i)^TS^-¹(x -µ_i) results in a sum involving a quadratic term x^TS^-¹x which here is independent of i. After this term is dropped from eq.4.41, the resulting discriminant functions are again linear.

After expanding out the first term in eq.4.60,

(4.61)

(4.62)

where

(4.63)

and

(4.64)

The boundary between two decision regions is given by

(4.65)

Now examine the second term from eq.4.64. Substituting the values for w_i₀ and w_j₀ yields:

(4.66)

Then, by adding and subtracting the same term:

(4.67)

Now if we let

(4.68)

Then the above line reduces to:

which is actually just:

=0 (4.69)

Now, starting with the original equation and substituting this line back in, the result is:

=0 (4.70)

So let

w = w_i - w_j

which means that the equation for the decision boundary is given by:

w^Tx - w^Tx₀=0 (4.71)

Because the discriminants are linear, the resulting decision boundaries are again hyperplanes. If R_i and R_jare contiguous, the boundary between them has the equation eq.4.71 where

w = () (4.72)

and

(4.73)

Again, this formula is called the normal form of the decision boundary.

As in case 1, a line through the point x₀ defines this decision boundary between R_i and R_j. If the prior probabilities are equal then x₀is halfway between the means. If the prior probabilities are not equal, the optimal boundary hyperplane is shifted away from the more likely mean The decision boundary is in the direction orthogonal to the vector w = (); The difference lies in the fact that the term w is no longer exactly in the direction of . Instead, the vector between m_i and m_j is now also multipled by the inverse of the covariance matrix. This means that the decision boundary is no longer orthogonal to the line joining the two mean vectors. Intstead, the boundary line will be tilted depending on how the 2 features covary and their respective variances (see Figure 4.19). As before, with sufficient bias the decision plane need not lie between the two mean vectors.

To understand how this tilting works, suppose that the distributions for class i and class j are bivariate normal and that the variance of feature 1 is and that of feature 2 is . Suppose also that the covariance of the 2 features is 0. Finally, let the mean of class i be at (a,b) and the mean of class j be at (c,d) where a>c and b>d for simplicity. Then the vector w will have the form:

This equation can provide some insight as to how the decision boundary will be tilted in relation to the covariance matrix. Note though, that the direction of the decision boundary is orthogonal to this vector, and so the direction of the decision boundary is given by:

Now consider what happens to the tilt of the decision boundary when the values of or are changed (Figure 4.16). Although the vector form of w provided shows exactly which way the decision boudary will tilt, it does not illustrate how the contour lines for the 2 classes are changing as the variances altered.

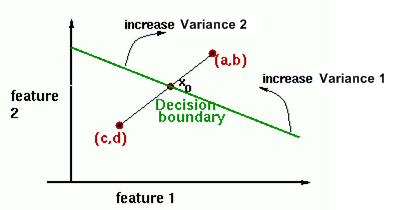

Figure 4.16: As the variance of feature 2 is increased, the x term in the vector will become less negative. This means that the decision boundary will tilt vertically. Similarly, as the variance of feature 1 is increased, the y term in the vector will decrease, causing the decision boundary to become more horizontal.

Does the tilting of the decision boundary from the orthogonal direction make intuitive sense? With a little thought, it is easy to see that it does. For example, suppose that you are again classifying fruits by measuring their color and weight. Suppose that the color varies much more than the weight does. Then consider making a measurement at point P in Figure 4.17:

Figure 4.17: The discriminant function evaluated at P is smaller for class apple than it is for class orange.

In Figure 4.17, the point P is at actually closer euclideanly to the mean for the orange class. But as can be seen by the ellipsoidal contours extending from each mean, the discriminant function evaluated at P is smaller for class 'apple' than it is for class 'orange'. This is because it is much worse to be farther away in the weight direction, then it is to be far away in the color direction. Thus, the total 'distance' from P to the means must consider this. For this reason, the decision bondary is tilted.

The fact that the decision boundary is not orthogonal to the line joining the 2 means, is the only thing that seperates this situation from case 1. In both cases, the decision boundaries are straight lines that pass through the point x₀. The position of x₀ is effected in the exact same way by the a priori probabilities.

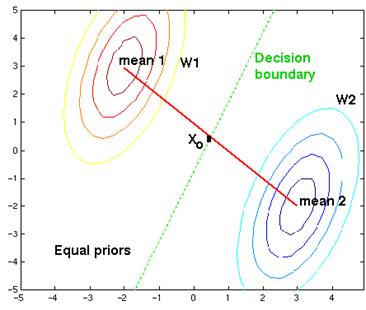

Figure 4.18: The contour lines are elliptical in shape because the covariance matrix is not diagonal. However, both densities show the same elliptical shape. The prior probabilities are the same, and so the point x₀ lies halfway between the 2 means. The decision boundary is not orthogonal to the red line. Instead, it is is tilted so that its points are of equal distance to the contour lines in w₁ and those in w₂.

Figure 4.19: The contour lines are elliptical, but the prior probabilities are different. Although the decision boundary is a parallel line, it has been shifted away from the more likely class. With sufficient bias, the decision boundary can be shifted so that it no longer lies between the 2 means:

Case 3:

In the general multivariate normal case, the covariance matrices are different for each category. This case assumes that the covariance matrix for each class is arbitrary. The discriminant functions cannot be simplified and the only term that can be dropped from eq.4.41 is the (d/2) ln 2p term, and the resulting discriminant functions are inherently quadratic.

(4.74)

which can equivalently be written as:

g_i(x) = x^TW_ix + w_i^Tx + w_i₀
where

and (4.75)

and

(4.76)

Figure 4.20: Typical single-variable normal distributions showing a disconnected decision region R₂

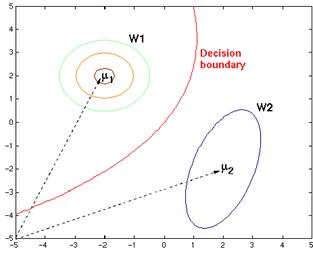

Because the expression for the g_i(x) has a quadratic term in it, the decision surfaces are no longer linear. Instead, they are hyperquadratics, and they can assume any of the general forms: hyperplanes, pairs of hyperplanes, hyperspheres, hyperellipsoids, hyperparaboloids, and hyperhyperboloids of various types. The decision regions vary in their shapes and do not need to be connected. Even in one dimension, for arbitrary variance the decision regions need not be simply connected (Figure 4.20). The two-dimensional examples with different decision boundaries are shown in Figure 4.23, Figure 4.24, and in Figure 4.25.
